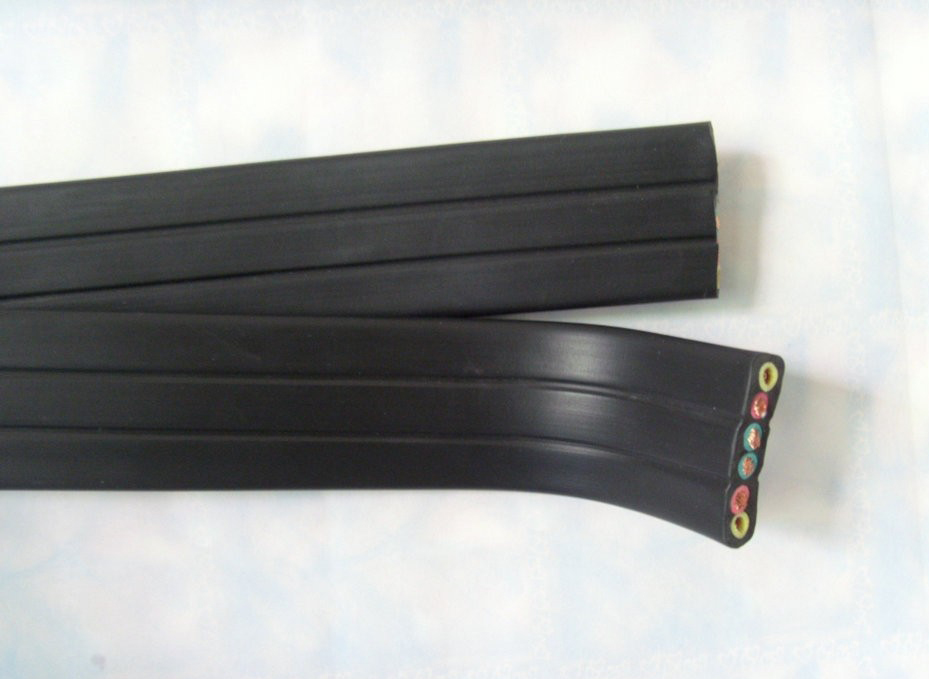

Properties:
Sheath: special polychloreprene(Butadiene-acrylonitrile rubber),it remains fexible at -15°C flame resistance and self-extinguishing
Structure:
Conductor: Superfine copper strands acc. to VDE 0295,class 5
Insulation: Mixed pvc, resistant to oil, flame resistance and self-exitinguishing
Colour: acc. to 227IEC (brown, blue, black, green/yellow) 5 cores or more with black number with white digital coding
Sheath: Butadiene-acrylonitrile rubber; resistant to oil, flame retardant and self-exitinguishing;
Colour:black(RAL9005) OR Grey(RAL 7001)
Standard: acc. to VDE 0482, part 265-2-2 resp.EN 50265-2-1 and IEC60332-1
Technical data:
Rated voltage: ≤ 1.5mm: 300/500V ≥ 1.5mm: 450/750V
Test voltage: ≤ 1.5mm: 2500V ≥ 1.5mm: 3000 V
Minimum bending radius: 0.3m≤L≤0.6M
Burning vertically test: GB/T1 8380.1-2001, IEC60332-1:1993 test
Passedstandard: GB5023.6 , IEC60227-6, EN50214.
Temperature range: -15°C to +70°C
Cables are recommender for installations where the suspended length doesnt exceed 80m :and the speed of travel does not exceed 4m/s.
Normal Cross Sectional Area of Conductor (mm2 ) | Normal Diameter of Strand (mm) | Normal Thickness of Insulation (mm) | Normal Thickness of Jacket (mm) | Over Diameter of Cable (mm) | Max Conductor Resistance at 20℃ ( ≤Ω/km ) |
2×0.75 | 0.20 | 0.6 | 0.8 | 4.0×6.4 | 4.4×7.2 |
2×1 | 0.20 | 0.6 | 0.9 | 4.3×6.8 | 4.7×7.6 |
2×1.5 | 0.25 | 0.8 | 1.0 | 5.2×8.4 | 5.7×9.4 |
2×2.5 | 0.25 | 0.9 | 1.1 | 6.0×9.8 | 6.5×10.8 |
2×4 | 0.30 | 1.0 | 1.2 | 7.0×11.6 | 7.6×12.8 |
2×6 | 0.30 | 1.0 | 1.3 | 7.8×13.0 | 8.4×14.2 |
3×0.75 | 0.20 | 0.6 | 0.9 | 4.2×9.0 | 4.6×9.8 |
3×1 | 0.20 | 0.6 | 0.9 | 4.3×9.3 | 4.8×10.3 |
3×1.5 | 0.25 | 0.8 | 1.0 | 5.2×11.5 | 5.8×12.7 |
3×2.5 | 0.25 | 0.9 | 1.1 | 6.0×13.6 | 6.7×15.0 |
3×4 | 0.30 | 1.0 | 1.2 | 7.0×16.0 | 7.8×17.6 |
3×6 | 0.30 | 1.0 | 1.3 | 7.8×18.0 | 8.8×20.0 |
4×0.75 | 0.20 | 0.6 | 0.9 | 4.2×11.4 | 4.7×12.4 |
4×1 | 0.20 | 0.6 | 0.9 | 4.3×12.0 | 4.9×13.2 |
4×1.5 | 0.25 | 0.8 | 1.1 | 5.4×15.0 | 6.2×16.6 |
4×2.5 | 0.25 | 0.9 | 1.2 | 6.2×17.6 | 7.0×19.2 |
4×4 | 0.30 | 1.0 | 1.3 | 7.2×20.8 | 8.0×22.4 |
4×6 | 0.30 | 1.0 | 1.4 | 8.0×23.0 | 9.0×25.0 |
5×0.75 | 0.20 | 0.6 | 1.0 | 4.4×14.0 | 5.0×15.2 |
5×1 | 0.20 | 0.6 | 1.0 | 4.5×14.8 | 5.2×16.2 |
5×1.5 | 0.25 | 0.8 | 1.1 | 5.4×18.0 | 6.2×19.6 |
5×2.5 | 0.25 | 0.9 | 1.3 | 6.4×21.6 | 7.2×23.2 |
5×4 | 0.30 | 1.0 | 1.4 | 7.4×25.6 | 8.2×27.2 |
5×6 | 0.30 | 1.0 | 1.6 | 8.4×29.0 | 9.4×31.0 |
6×0.75 | 0.20 | 0.6 | 1.0 | 4.4×16.3 | 5.0×17.5 |
6×1 | 0.20 | 0.6 | 1.1 | 4.7×17.3 | 5.4×18.7 |
6×1.5 | 0.25 | 0.8 | 1.2 | 5.6×21.2 | 6.4×22.8 |
6×2.5 | 0.25 | 0.9 | 1.4 | 6.6×25.4 | 7.4×27.0 |
6×4 | 0.30 | 1.0 | 1.5 | 7.6×30.2 | 8.4×31.8 |
6×6 | 0.30 | 1.0 | 1.7 | 8.6×34.0 | 9.4×35.6 |
If other type flat cable required, please feel free to contact us.
