Application:

Drum Brakes, widely used in lifting transport, port handling, metallurgical equipment, mining machinery and engineering machinery deceleration and stopping of various institutions (maintain) the brake.

Special requirements

l  According to user requirements, we can produce a variety of normally open, explosion-proof and non-standard products.

Electro- hydraulic drum brakes

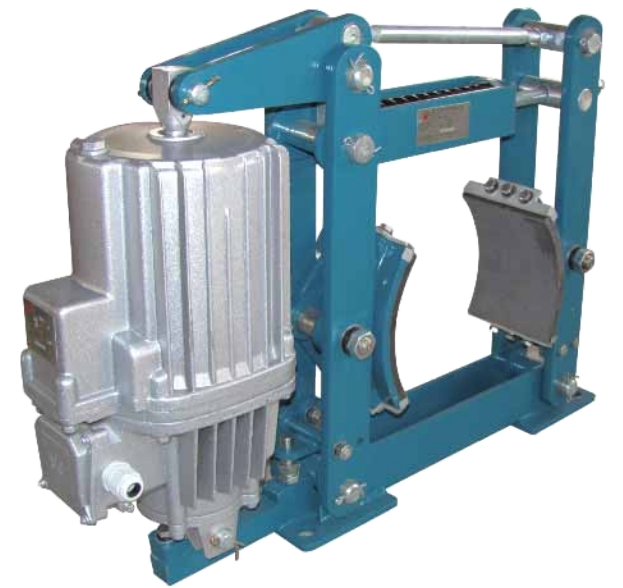

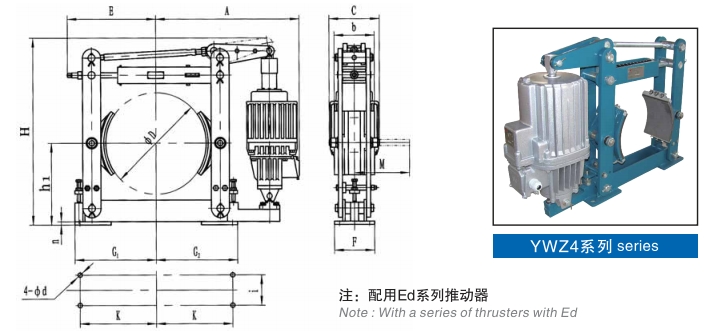

YWZ4 series electro-hydraulic drum brake

Main Design Features

l  There are two methods for mounting of the brake linings upon request of the customer:

Riveted type and inserted type (please specify when ordering)

l  Main swinging articulation is equipped with the self-lubricating bearing

The transmission efficiency is high, in use without lubrication.

Operating conditions

l  Ambient temperature: -25~+40℃

l  Relative humidity: ≤90%

l  Power：AC3 phase 50 Hz(60)Hz

l  Voltages: 380.400(440.460)V

l  Around the workplace shall not commit any flammable, explosive and corrosive gases. Special requirements can be discussed in order.
