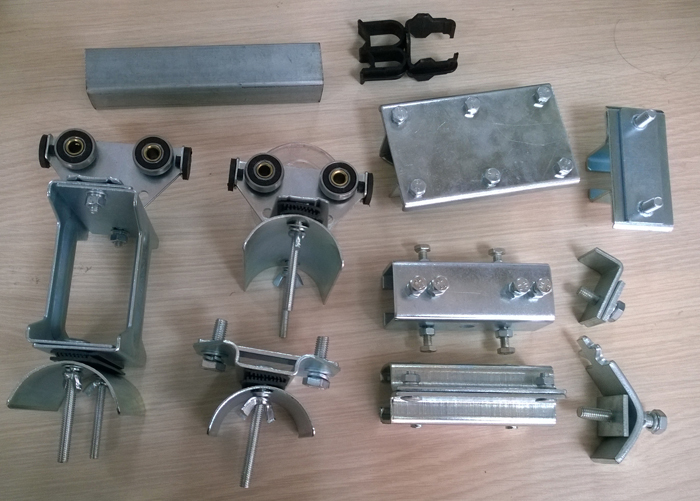

Komay Festoon Systems support conductor cables(flat or round) and hoses
(hydraulic and pneumatic application for delivering power & control to mobile
equipment in a safe, efficient and maintenance free method.

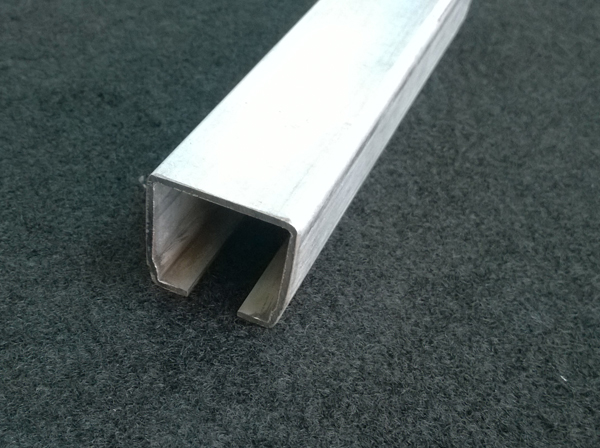

C-track
Type | C32*30*5 | C40*40*2.0 | C63*63*4.0 | C30*28*1.5 |
Cat.-NO | 710116* | 720116* | 750116* | 700116* |
Material | Galvanized steel | |||
Weight Kg/m | 1.19 | 2.00 | 5.98 | 1.03 |
Technical data | ||||
A | 32 | 40 | 63 | 30 |
B | 30 | 40 | 63 | 28 |
C | 12 | 13 | 18 | 10 |
δ | 1.5 | 2.0 | 4.0 | 1.5 |
Spacing | Max. Cable Load | |||
1.5m | 89kg | 188kg | 503kg | 70kg |
2.0m | 51kg | 103kg | 425kg | 36kg |
2.5m | 39kg | 73kg | 302kg | 22kg |
3.0m | 23kg | 49kg | 195kg | - |
4.0m | - | 28kg | 85kg | - |

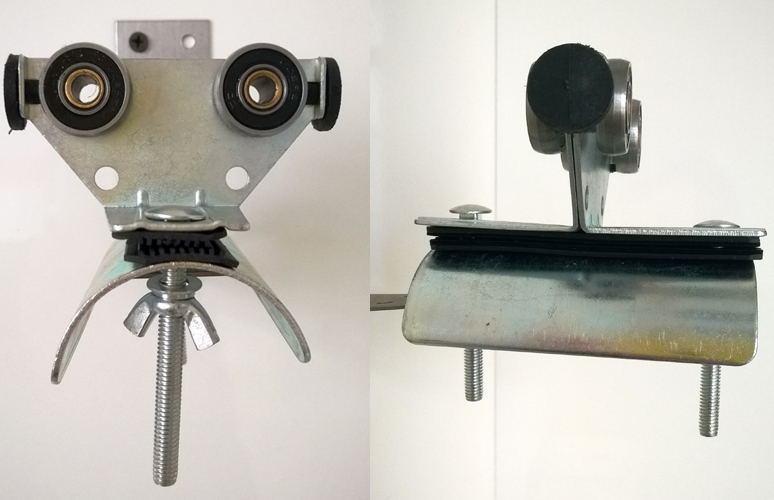

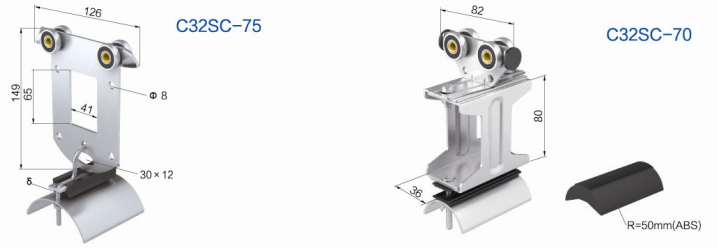

C32 Towing Trolley
Type | C32SC-75 | C32SC-70 |
Wheels | Ball bearing, hardened, galvanized Temperature resistance Lub. Grease of wheel:-30℃to+125℃ Traveling Speed: ca. 160m/min. | |
Material | Carrier body: steel, galvanized Support saddle:steel, galvanized Bumper:Neoprene Dowel: Brass Hardware: galvanized Temperature resistance:-30℃to+100℃ | |
Max.cable load | max.25 kg per carrier | max.22 kg per carrier |
Dim.of Cable (mm) | max. 75W×32δ | max. 70W×32 |
Weight(kg) | 0.59/0.52 | 0.55 |
Cat.-NO. | 711101/711102 | 711105 |

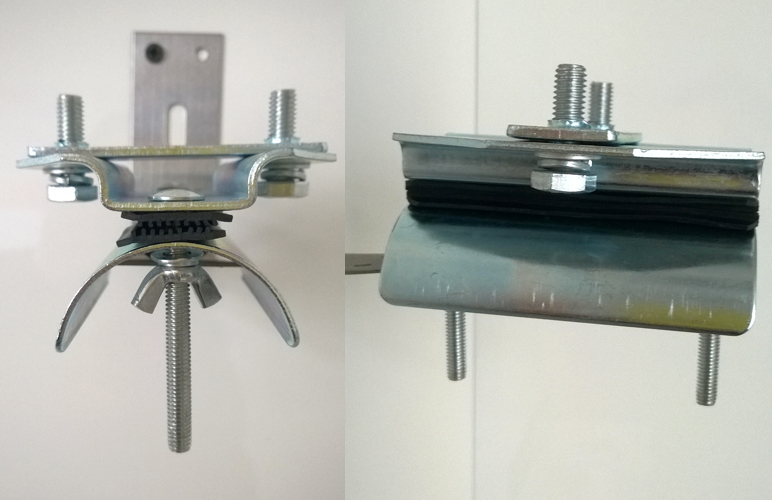

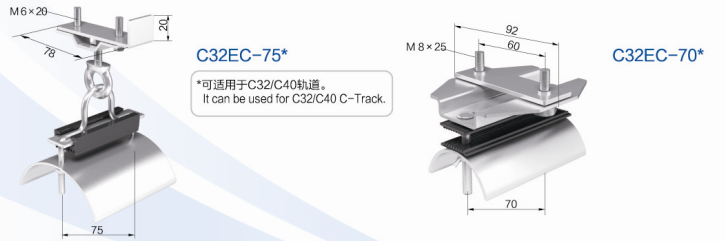

C32 End Trolley
Type | C32EC-75 | C32EC-70 |
Material | Carrier body: steel, galvanized Support saddle:steel, galvanized Dowel: steel, galvanized Hardware: galvanized | |
Max.cable load | max.25 kg per carrier | max.22 kg per carrier |
Dim.of Cable (mm) | max. 75W×32δ | max. 70W×32δ |
Weight(kg) | 0.37/0.30 | 0.31 |
Cat.-NO. | 711301/711302 | 711305 |

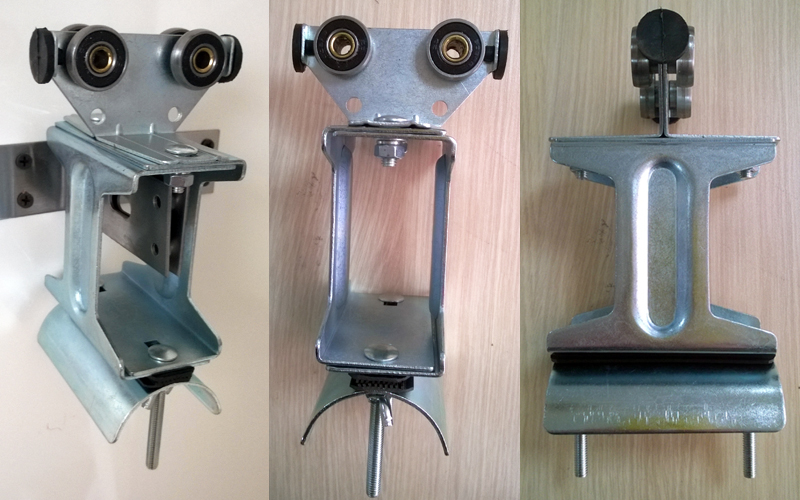

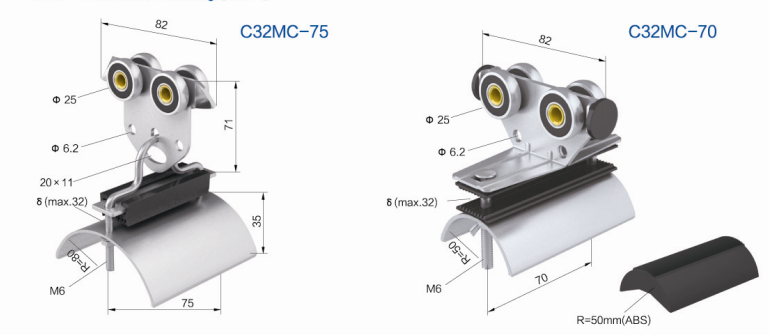

C32 Middle Trolley
Type | C32MC-75 | C32MC-70 |
Wheels | Ball bearing, hardened, galvanized Temperature resistance Lub. grease of wheel:-30℃to+125℃ Traveling Speed: ca. 160m/min. | |
Material | Carrier body: steel, galvanized Support saddle:steel, galvanized Bumper:Neoprene Dowel: Brass Hardware: galvanized Temperature resistance:-30℃to+100℃ | |
Max.cable load | Max.30 kg per carrier | Max.25 kg per carrier |
Dim.of Cable (mm) | max. 75W×32δ | max. 75W×32δ |
Weight(kg) | 0.41 | 0.32 |
Cat.-NO. | 711101 711102(R=50,ABS) | 711205 |

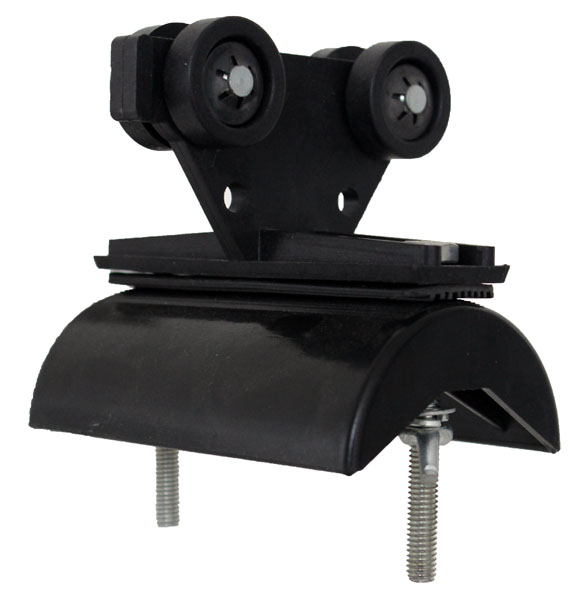

C32 Plastic Middle Trolley
Type | C32PMC-70 |
Wheels | Wheel: nylon Temperature resistance Lub. grease of wheel:-30℃to+80℃ Traveling Speed: ca. 120m/min. |
Material | Carrier body: ABS Support saddle: ABS Bumper:Neoprene Dowel: steel , galvanized Hardware: galvanized Temperature resistance:-30℃to+80℃ |
Max.cable load | Max.8 kg per carrier |
Dim.of Cable (mm) | max. 70W×32δ |
Weight(kg) | 0.14 |
Cat.-NO. | 711215 |

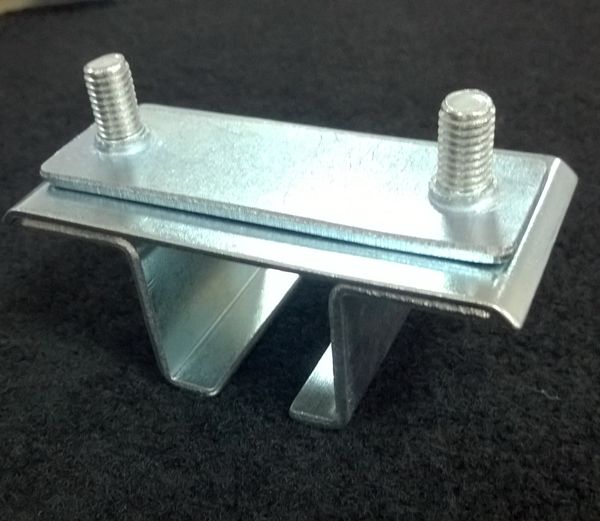

C32 Hanger
